CLUTCH PARTS FOR CASE TRACTORS

Click the images above to view a larger picture and detailed part specifications.

All of our Case Tractor Clutch Kits contain the following parts: New or remanufactured pressure plate assembly, new or remanufactured clutch disc, new release (throw out) bearing; and a new pilot bearing when noted. For tractors that use a bronze bushing instead of a pilot bearing, the bronze bushing is NOT included.
Buy Description Price

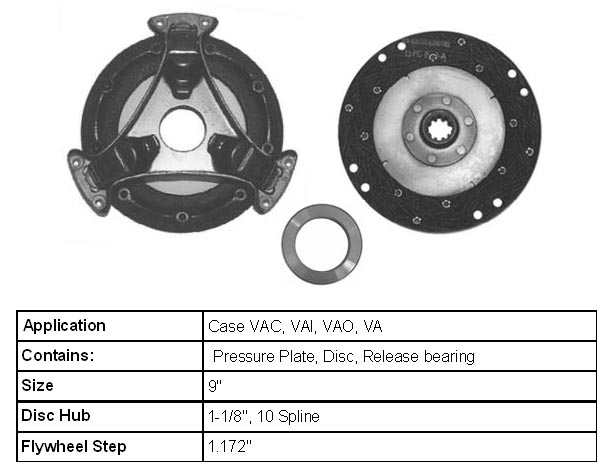

Case VAC, VAI, VAO, VA, V, VC
Clutch kit. Parts included: Pressure plate assembly, Drive disc, Release (Throw out) bearing
$35.00 credit when a good core is returned		 $269.00

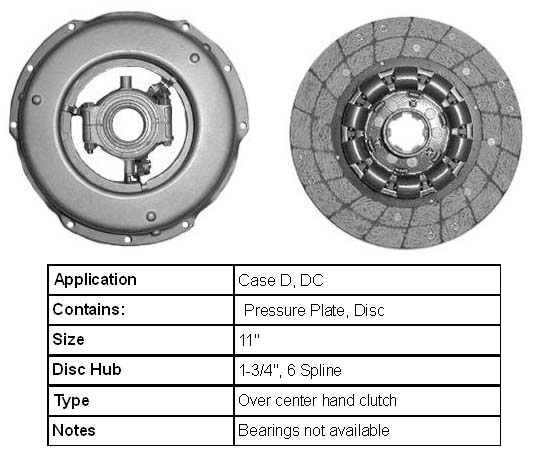

Case D, DC
11" Over center hand clutch kit. Parts included: pressure plate assembly, drive disc
($40.00 credit when a good core is returned)		 $279.00

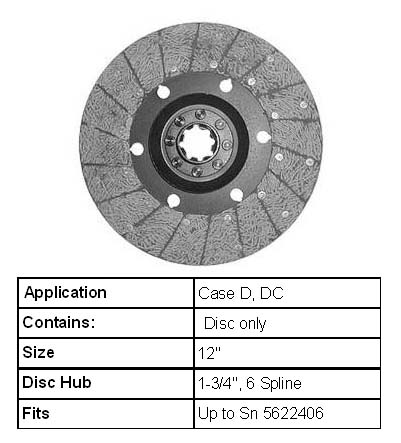

Case D, DC
12" Clutch disc only with early 6 spline hub fits up to Sn 5622406
($15.00 credit when a good core is returned)		 $119.00
Case D, DC
Clutch kit Parts included: Pressure plate assembly, 10 spline drive disc
($36 core credit when a good core is returned)		 $339.00
Case S, SC
Hand clutch kit Parts included: Pressure plate, drive disc, pilot bearing
($70.00 credit when a good core is returned)		 $279.00
Call Case 200B, 300, 300B; Early 420 and 430
9.25" Clutch kit Parts included: 24 Spline pressure plate assembly, 10 Spline drive disc, release bearing
($36.00 credit when a good core is returned)		 $339.00

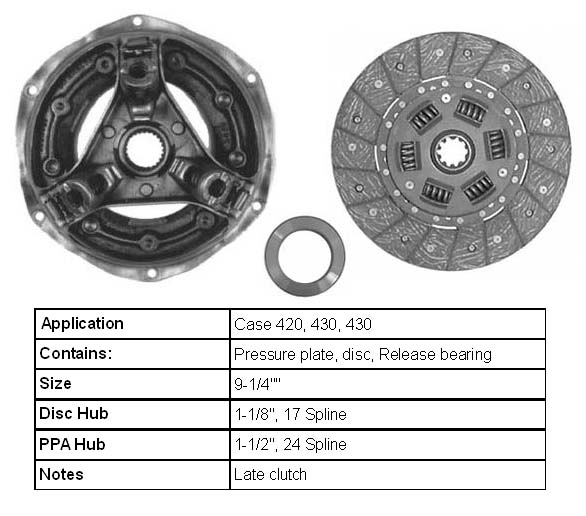

Case 420, 430, 530
9.25" Live PTO clutch kit Parts included: 24 Spline pressure plate assembly, 17 Spline drive disc, release bearing ($36.00 credit when a good core is returned)		 $349.00

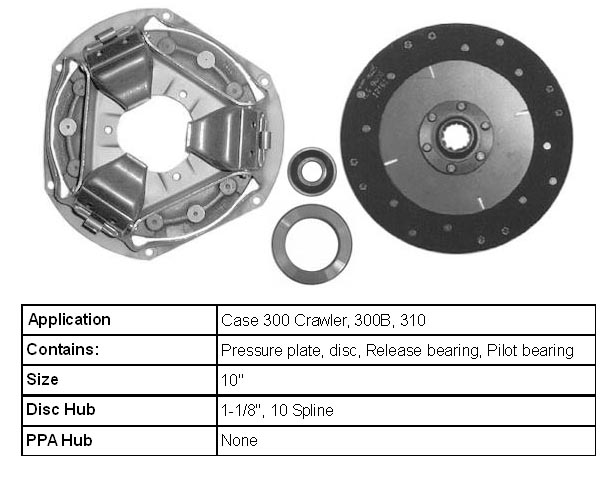

Case 300, 300B, 310
10" Clutch kit Parts included: Open center pressure plate assembly, 10 spline drive disc, release bearing (throw out), pilot bearing ($37.00 credit when a good core is returned)		 $295.00

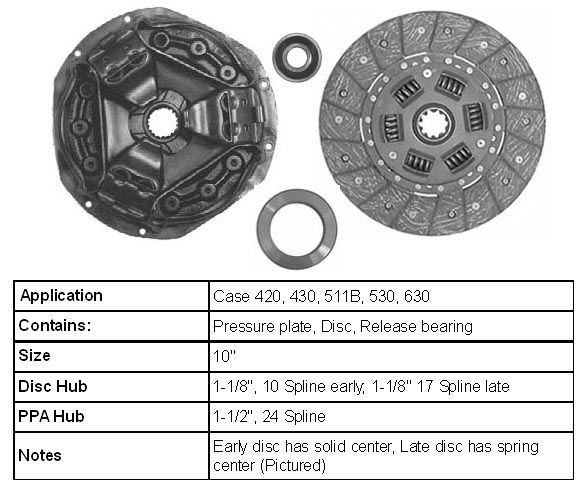

Case 420, 430, 530, 630 all up to Sn 8191146; 511B
10" Live pto clutch kit Parts included: 24 Spline pressure plate assembly, 10 Spline drive disc, release bearing, pilot bearing
( $50.00 credit when a good core is returned)		 $329.00
Case 420, 430, 530, 630
10" Live PTO clutch kit Parts included: 24 Spline pressure plate assembly, 17 Spline drive disc, release bearing, pilot bearing
($50.00 credit when a good core is returned)		 $329.00

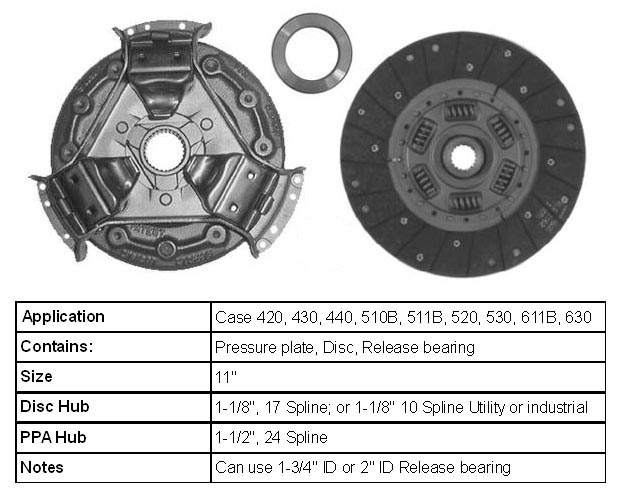

Case 420, 430, 530 all up to Sn 8262799: 440, 510B, 520, 611B, 630 all with 1.75 ID release bearing
Live PTO clutch kit parts included: 24 spline pressure plate assembly, 17 spline drive disc, release bearing ($50.00 credit when a good core is returned)		 $329.00
Case 420, 430, 510B, 530 all Sn 82627800 to 8297800; 520, 611B, 630 all with 2" ID release bearing; 440, 510B
Live PTO clutch kit Parts included: 24 Spline pressure plate assembly, 17 Spline drive disc, release bearing ($50.00 credit when a good core is returned)		 $329.00
Case 420, 430, 470, 480, 530, 570, 580
Live PTO clutch kit Parts included: 29 spline pressure plate assembly, 21 spline drive disc, release bearing (throw out), pilot bearing
($50.00 credit when a good core is returned)		 $329.00

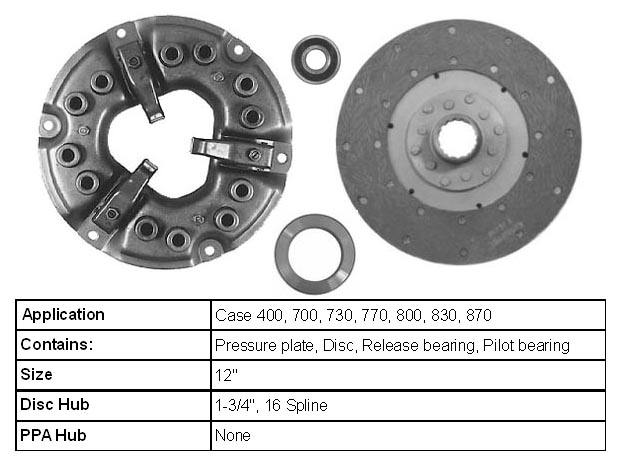

Case 400, 700, 730, 770, 800, 830, 870
Clutch kit Parts included: pressure plate assembly, 16 Spline drive disc release (throw out) bearing, pilot bearing ($50.00 credit when a good core is returned)		 $325.00







When servicing your tractor clutch we recommend Replacing all of the parts as a "KIT". Parts that should be replaced are: Pressure plate assembly, clutch disc, release bearing or throw out bearing, pilot bearing.
We also recommend having your flywheel machined by a professional machine shop, and replacing the flywheel ring gear if it shows signs of wear.
