HOOD PATCH FOR JOHN DEERE TRACTORS

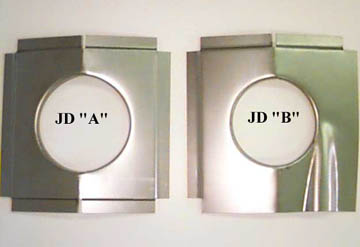

John Deere A & B hood patch.
Our John Deere hood patches are designed to weld on from the
bottom and have the original rolled edge muffler opening.
The A hood patch is flanged on all four sides. Installation is as simple as
cutting A 6-1/2" X 6-1/2" square hole around the muffler opening. The hood patch
is then easily welded in from the back side using the four sided flange. The
seam on the top side of the hood can then be finished using a small amount of
The B hood patch is installed much the same way except that it is only flanged
on two sides due to the rolled dent for the steering shaft to pass through. Some
additional body work is required on the two non flanged sides, but it is still a
lot easier than trying to repair the hood from scratch.
John Deere A & B muffler patch.
